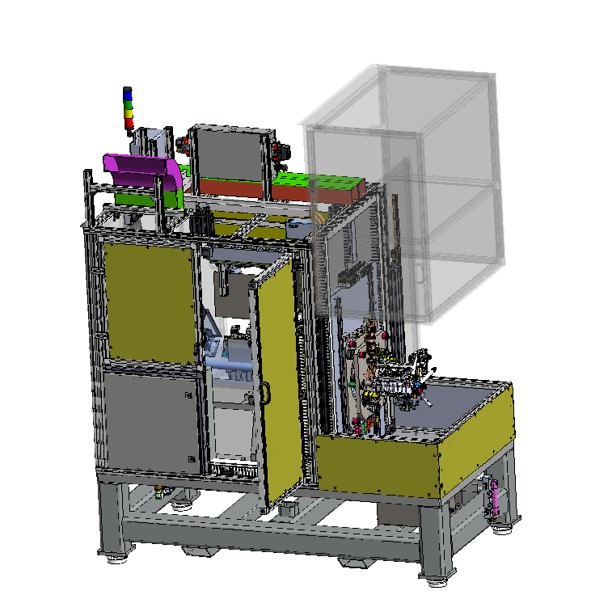

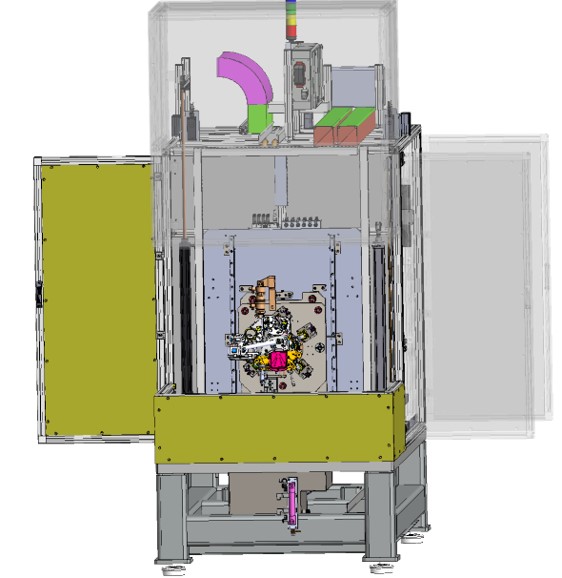

2in1(motor + inverter) offline test station

Author：admin Views：164 Source：本站 Time：2022-12-24 16:01:25

Abstract：

New energy-two-in-one (motor + inverter) offline test stationMain test items1.Resistance of winding2.Resistance of temperature sensor3.Insulation resistance4.Withstand voltage( winding to housing/sensor to housing)5.Pole-angle offset6.BEMF7.Resolver testing8.Friction losses9.NVH Testing

New energy-two-in-one (motor + inverter) offline test station

Main test items

1.Resistance of winding

2.Resistance of temperature sensor

3.Insulation resistance

4.Withstand voltage( winding to housing/sensor to housing)

5.Pole-angle offset

6.BEMF

7.Resolver testing

8.Friction losses

9.NVH Testing
