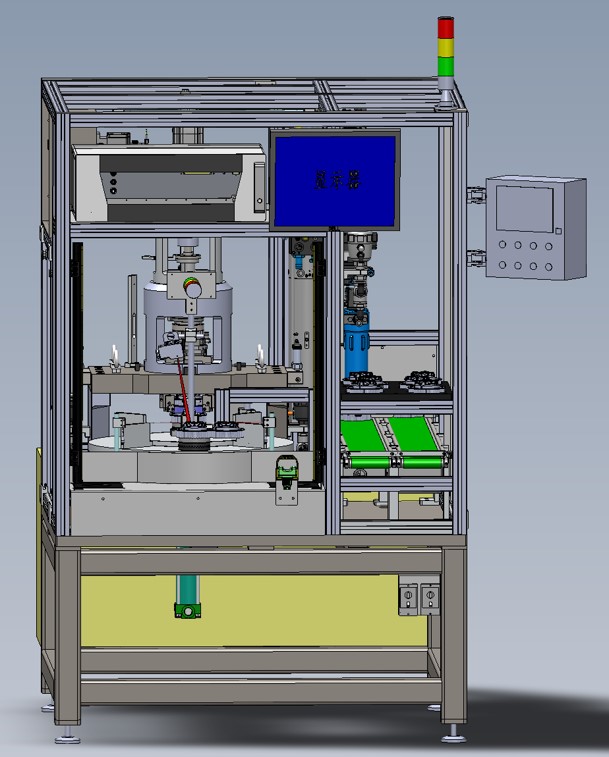

VVT-Phaser test system（EOL tester)

VVT-Phaser test system（EOL tester)

Test medium： Compressed air
Developed by LabVIEW：Labview
Main test item：

● Phaser full angle

● Friction torque

● Lock pin clearance

● Unlock pressure

● Internal leakage flow

Main test element:

● Angel sensor

● Torque sensor

● Air pressure sensor

● Electrical converter

● Capture card

● Leakage tester
